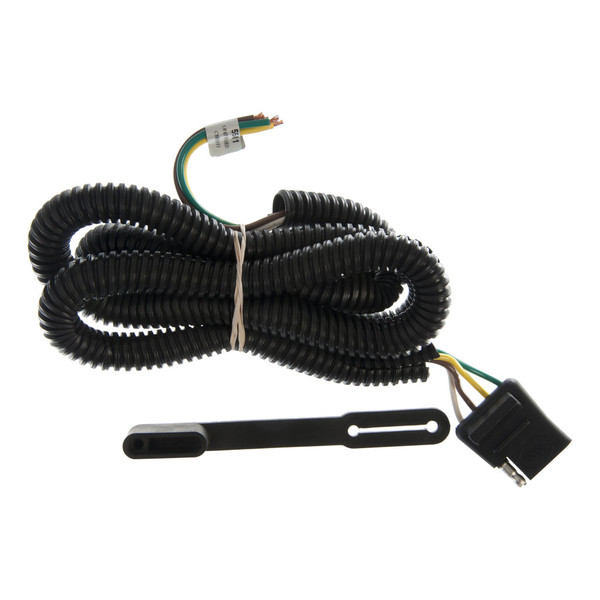

Product Overview
- Splices into vehicle tail light assembly to provide a 4-way flat socket
- 4-way flat output connects tail lights, brake lights and turn signals
- Color-coded wires for easier installation
- Snap locks included for fast, secure splicing
- Dust cover included to keep connector clean when not in use
- Slit loom keeps wires contained and well protected
- Backed by a limited one-year warranty
- Made in USA
Instruction Sheet
Download
Notes
- Fits standard 2-wire system
Vehicles
- 1995 GMC Jimmy S-15, 2 or 4 Door
- 1995 GMC Safari, All (16 In. Spare Requires Relocation)
- 1995 Chevrolet Blazer, All
- 1995 Chevrolet Astro, All (16 In. Spare Requires Relocation)
- 1995 Oldsmobile, Bravada, All
- 1996 GMC Jimmy S-15, 2 or 4 Door
- 1996 GMC Safari, All (16 In. Spare Requires Relocation)
- 1996 Chevrolet Blazer, All
- 1996 Chevrolet Astro All (16 In. Spare Requires Relocation)
- 1996 Oldsmobile Bravada, All
- 1997 GMC Jimmy S-15, 2 or 4 Door
- 1997 GMC Safari, All (16 In. Space Requires Relocation)
- 1997 Chevrolet Blazer, All
- 1997 Chevrolet Astro, All (16 In. Spare Requires Relocation)
- 1997 Oldsmobile Bravada, All
- 1998 GMC Jimmy S-15, 2 or 4 Door
- 1998 GMC Safari, All (16 In. Spare Tire Requires Relocation)
- 1998 Chevrolet Blazer, All
- 1998 Chevrolet Astro, All (16 In. Spare Requires Relocation)
- 1998 Oldsmobile Bravada, All
- 1999 GMC Jimmy S-15, 2 or 4 Door
- 1999 GMC Safari, All (16 In. spare Requires Relocation)
- 1999 Chevrolet Blazer, All
- 1999 Chevrolet Astro, All (16 In. Spare Requires Relocation)
- 1999 Oldsmobile Bravada, All
- 2000 GMC Jimmy S-15, 2 or 4 Door
- 2000 GMC Safari, All (16 In. Spare Requires Relocation)
- 2000 Chevrolet Blazer, All
- 2000 Chevrolet Astro, All (16 In. Spare Requries Relocation)
- 2000 Oldsmobile Bravada, All
- 2001 GMc Jimmy S-15, 2 or 4 Door
- 2001 GMC Safari, All (16 In. spare Requires Relocation)
- 2001 Chevrolet Blazer, All
- 2001 Chevrolet Astro, All (16 In. Spare Requires Relocation)
- 2001 Oldsmobile, Bravada, All
- 2002 GMC Jimmy S-15, 2 or 4 Door
- 2002 GMC Safari, All (16 In. Spare Requires Relocation)
- 2002 Chevrolet Blazer, All
- 2002 Chevrolet Astro, All (16 In. Spare Requires Relocatiaon)
- 2002 Oldsmobile Bravada, All
- 2003 GMC Jimmy S-15, 2 or 4 Door
- 2003 GMC Safari, All (16 In. Spare Requires Relocation)
- 2003 Chevrolet Blazer, All
- 2003 Chevrolet Astro, All (16 In. Spare Requires Relocation)
- 2003 Oldsmobile, Bravada, All
- 2004 GMC Jimmy S-15, 2 or 4 Door
- 2004 GMC Safari, All (16 In. Spare Requires Relocation)
- 2004 Chevrolet Blazer, All
- 2004 Chevrolet Astro, All (16 In. Spare Requires Relocation)
- 2004 Oldsmobile, Bravada, all
- 2005 Chevrolet Astro, All (16 In. Spare Requires Relocation)
Additional Information
Like trailer hitches and ball mounts, electrical connectors range all over the board in shape, size and capability, but no matter what your trailer's electrical functions are, you need a solid connection to keep the power flowing and ensure safety on the road. CURT electrical connectors are designed and manufactured to give you a reliable connection every time you plug in your trailer.
Most vehicles do not come ready to tow. Unless your vehicle has a towing package, it is probably not equipped with a trailer wiring connector. This vehicle-to-trailer wiring harness is designed to splice into specific makes and models and supply power for tail lights, turn signals and brake lights, as well as a ground connection. It is intended to be a custom wiring harness for certain years of the Chevrolet Astro, Chevy Blazer S-10, Oldsmobile Bravada, GMC Jimmy S-15 and GMC Safari (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com).
This CURT custom vehicle-to-trailer wiring harness features durable rubber-molded construction and is made with standard color-coded, bonded wire to easily splice into your vehicle's wiring system. It is a female-end socket, specifically designed for the car side of the connection, and comes with a dust cover and slit loom sleeve to protect the wires. It is compatible with 2-wire vehicle systems and comes with a one-year limited warranty for peace of mind.
